White Aluminum Tri-Fold Blind Rivets
Technical Specification

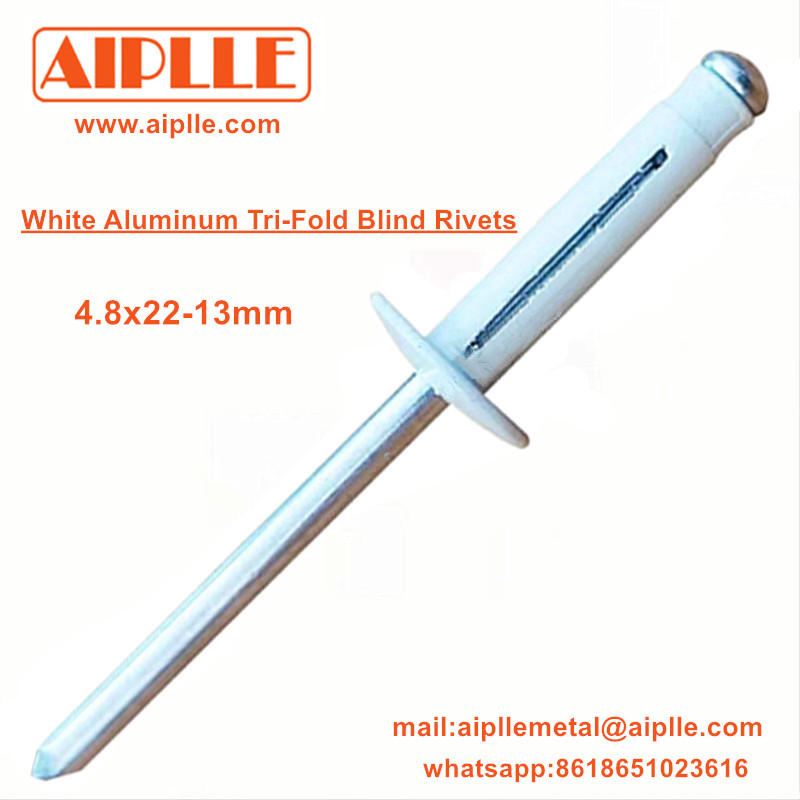

| Product Type: | White Painted Trifold Blind Rrivets-4.8x22-13mm Aluminium Tri-fold Blind Rivets-Bulb Rivets |
| Rivet Material: | Aluminum Body/Aluminum Mandrel |
| Surface Finishing: | White coating Polish/Rivet Body Polish |
| Rivet Diameter: | 3.2/4 /4.8/6.4mm;1/8",5/32",3/16",1/4" |
| Customized: | Customized color |
| Standard: | 8031 |
| Certificate: | IATF16949-2016 . |
| Compare: | Tri-fold Rivets VS regular rivets |
| Specification : | 3.2mm aluminium tri-fold blind rivets 4.0mm aluminium tri-fold blind rivets 4.8mm aluminium tri-fold blind rivets 6.4mm aluminium tri-fold blind rivets |
Features of tri-fold Blind Rivets
Stable Trifold Expansion Structure: Expands into three uniform lobes after installation to create a large, tight clamping surface. It delivers balanced holding force, excellent vibration resistance and anti-loosening performance, suitable for dynamic working conditions.
Durable White Painted Finish: High-adhesion full-body yellow coating resists peeling, fading and corrosion. It provides reliable rust protection for indoor and outdoor use, while offering distinct visual identification and decorative effects.
Universal Material Compatibility: Gentle dispersed clamping force avoids cracking or deformation. Ideal for fastening thin, soft and fragile materials including metal sheets, plastic, PVC, wood and composite panels.
Single-Side Blind Installation: Supports one-sided riveting only, perfect for enclosed or hard-to-reach mounting positions where backside operation is unavailable, greatly improving construction flexibility.
Lightweight & Reliable Strength: Premium full-aluminum construction features low weight and stable tensile & shear strength, realizing lightweight assembly without compromising fastening firmness.

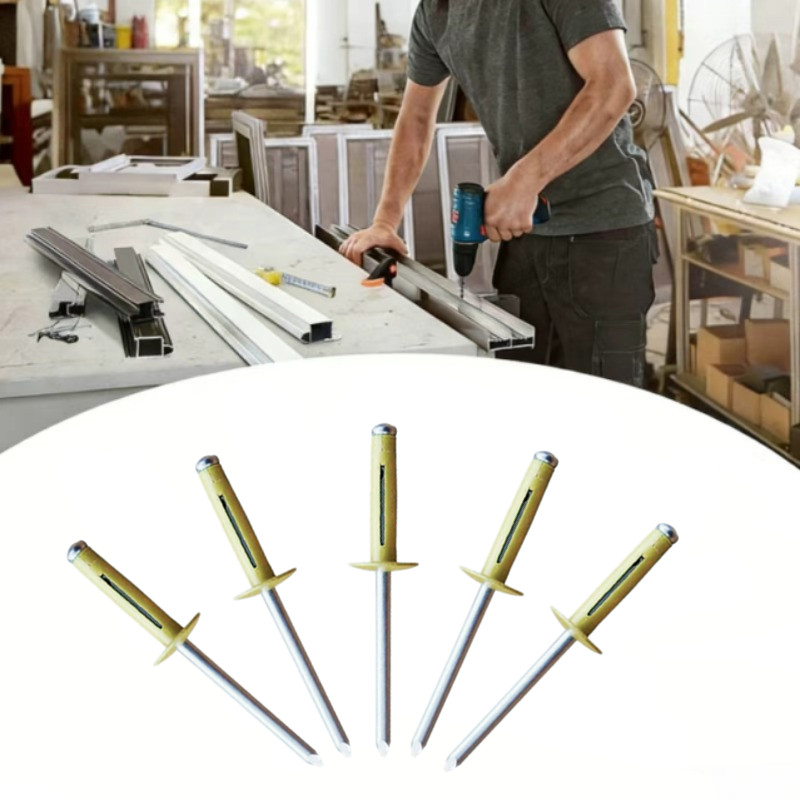

Application of Tri-fold Rivets
How tri-fold Rivets worsk is also guide for you !
installation Guide
- Prepare Parts & Tools: Pick the right rivet size based on your material thickness and hole size. Get your standard rivet gun ready and clean up dirt, dust and burrs from the mounting surface for a tight fit.
- Drill Clean Holes: Drill holes to the required standard size. Keep holes straight and smooth, then clear out all debris inside to avoid loose installation.
- Insert Rivet in Place: Feed the rivet fully through the pre-drilled hole until the rivet head sits flat and tight against the material surface, with the mandrel fully exposed.
- Rivet & Lock Firmly: Grip the mandrel straight with your rivet gun and pull steadily. The rivet body will expand into three lobes to grip and lock the materials tightly, and the mandrel will snap off automatically once finished.
-
Check Finished Work: Double-check the final result. Make sure the rivet is fixed firmly with a flat head, no shaking, no tilted installation and no damaged coating.
For more professional guide,Pls search AIPLLEMETAL professional installation.
Packing and Transportation
| Transport : | By sea or By air.By truck |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Port: | Shanghai , Ningbo,China |
| Lead Time : | 1. 2~5 days for stock items 2.15~20 Working Day for A 20' Container |
| Package : | 1. Bulk packing: 20-25kgs per carton)
2. Small color box, window box, polybag, blister. Double shell packing or as clients’requirement. 3. Assortment in polybag or plastic box. |
Our Service
FAQ
-
1. What is white exploading pop rivet?
-
1. Why trifold blind rivet also called bulb-lite rivets?
