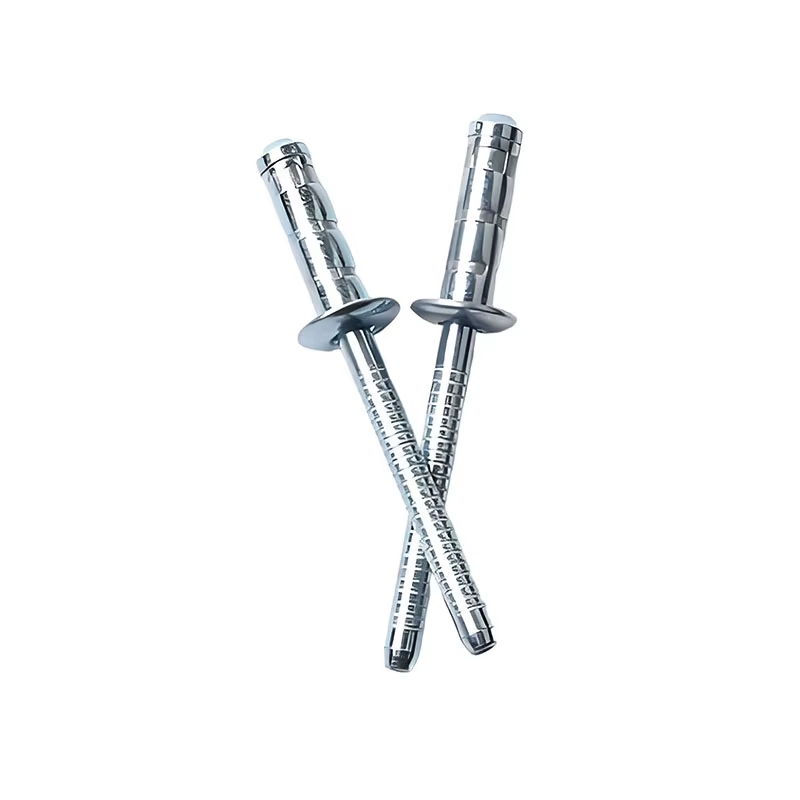

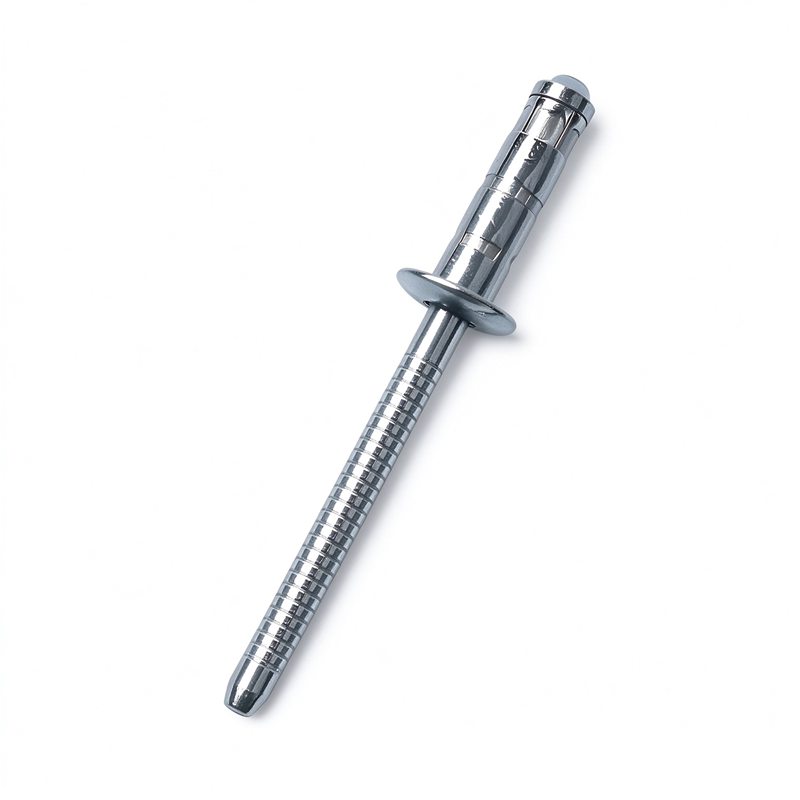

Steel MultiGrip Blind Rivets
Technical Specifications
| Type: | Steel Multi-grip Blind Rivet Steel multi grip blind rivets Zinc plated steel multigrip rivets |
| Rivet Body Material: | Steel |
| Rivet Mandrel Material: | Steel |
| Finishing: | Zinc plated |
| Diameter: | 3.2mm, 4.0mm, 4.8mm, (1/8", 5/32", 3/16") |
| Customized: | Customized Size Available |
| Standard: | 1624,8023 |
Steel Multi-grip Rivets Features
.Wide Grip Range – Steel multi-grip blind rivets accommodate different material thicknesses with a wide grip range.
.High Strength – Made from carbon steel for reliable strength and durable fastening performance.
.Easy Installation – Blind design allows fast installation from one side, ideal for hard-to-reach areas.
.Secure Fastening – Provides strong and stable joints for metal sheets and other materials.
.Versatile Applications – Suitable for automotive, construction, machinery, and general industrial fastening.
Size Selection
Aipllemetal provide professional size selection sheet.Select size according to your required grip range and hole diameter.
| Size | Drill Size | M Max. (mm) | Grip Range (mm) | B Max. (mm) | K Max. (mm) | E Max. (mm) | Shear (kN Min.) | Tensile (kN Min.) |
|---|---|---|---|---|---|---|---|---|
| 3.2 mm (1/8") | 3.3–3.4 mm | 14.2 | 1.0–7.0 | 7.6 | 1.1 | 2.2 | 1.0 | 1.4 |
| 3.2 mm (1/8") | 3.3–3.4 mm | 15.7 | 2.0–8.0 | 8.4 | 1.5 | 2.8 | 1.5 | 2.0 |
| 4.0 mm (5/32") | 4.1–4.2 mm | 12.2 | 1.5–5.1 | 10.1 | 1.6 | 3.0 | 2.7 | 2.9 |
| 4.0 mm (5/32") | 4.1–4.2 mm | 13.7 | 1.5–6.3 | 10.1 | 1.6 | 3.0 | 2.7 | 2.9 |
| 4.8 mm (3/16") | 4.9–5.0 mm | 17.0 | 1.5–9.5 | 10.1 | 1.6 | 3.0 | 2.7 | 2.9 |
| 4.8 mm (3/16") | 4.9–5.0 mm | 20.1 | 6.4-12.7 | 10.1 | 1.6 | 3.0 | 2.7 | 2.9 |
Steel Multigrip Rivets Installation
1.Select the Correct Size – Choose the appropriate steel multi-grip blind rivet according to the material thickness and required grip range.
2.Drill the Hole – Drill a clean hole using the recommended drill diameter for the selected rivet size.
3.Insert the Rivet – Insert the steel multi-grip blind rivet through the aligned materials until the rivet head is firmly seated.
4.Set the Rivet – Place the rivet mandrel into a suitable blind rivet tool and squeeze the handles to pull the mandrel and expand the rivet body.
5.Check the Joint – Ensure the rivet is fully set and the materials are securely fastened.
Our service
Aipllemetal provide custom steel multi-grip blind rivets tailored to your specific application and assembly requirements. Our customization service supports different blind rivet sizes, grip ranges, head styles, materials, and surface finishes.
FAQ
-
1. What are steel multi-grip blind rivets?
-
2.What materials can steel multi-grip blind rivets fasten?
-
3.What is the difference between a standard blind rivet and a steel multi-grip blind rivet?
