Stainless Steel Large Head Blind Rivets
Technical Specifications
| Type: | Stainless Steel Large Flange Rivets Stainess Steel Large Flange Pop Rivets |
| Material: | 304/316 Stainless Steel Rivet Body /Stainless Steel RivetMandrel |
| Finishing: | Polish |
| Rivet Body Diameter: | 3.2mm, 4.0mm, 4.8mm, 6.4mm, (1/8“, 5/32”, 3/16“,1/4”) Flange:12mm/14mm/16mm |
| Customized: | Customized size available |
| Standard: | GB12618 and DIN 7337, ISO15977 |
| Specification: | 4x10-12mm.4.8x12-14mm,4.8x16-16mm |

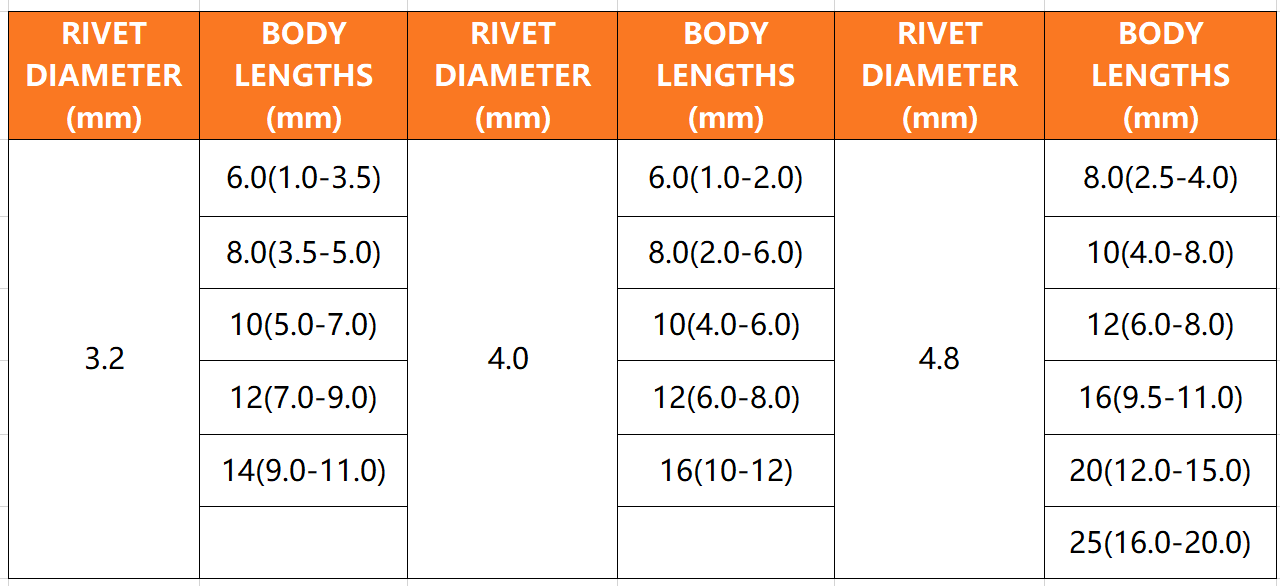

Grip Range
Grip Range Sheet For you .
Features
1.Rivets large flage is very strong and is great for both indoor and outdoor use. 304/316 Stainless steel rivets are superior to regular steel and provide excellent rust resistance in salt water applications.Stainless steel blind rivets is suitable For automotive.
2.It is great to have around for use in wood and wet environments.
3.This rivet is the highest quality available on the market and we stand by our claim 100%. They are strong, corrosion resistant and will support all of your projects.
Application
Stainless steel large flange rivets are suitable for:
.Sheet Metal – Joining thin metal sheets and panels.
.Cladding & Panels – Securing exterior panels and cladding systems.
.Roofing – Fastening roofing sheets and components.
.Automotive – Joining lightweight metal parts and body panels.
.Electrical Enclosures – Fastening metal housings and cabinets.
.Industrial Equipment – Assembly of equipment panels and fabricated parts.
.Outdoor Applications – Suitable for applications requiring good corrosion resistance.
.We have one complete line including cold forming machine, polish machine ,treatment machine ,assembling machine, testing machine ,packing machine and so on.
Size Selection
Choose the right stainless steel large flange rivet based on the following:
Rivet Diameter– Select the diameter according to the required hole size and joint strength.
Grip Range– Choose a rivet that matches the total thickness of the materials being joined.
Rivet Length – Make sure the rivet length is suitable for the material thickness and selected grip range.
Flange Diameter – Select a larger flange（12mm,14mm,16mm) when greater load distribution is required, especially for thin or softer materials.
Material Grade – Choose A2/304 or A4/316 stainless steel according to the application and environment.
Installation Guide
1.Choose the Correct Rivet
Measure the combined thickness of the materials and select a stainless steel large flange rivet with the appropriate diameter, length, and grip range. Make sure the material thickness falls within the specified grip range for reliable fastening.
2. Prepare the Rivet Hole
Drill a hole according to the recommended diameter for the selected rivet. Keep the hole clean, round, and free from excessive burrs to allow the rivet body to pass through smoothly.
3. Align the Materials
Bring the materials together and align the pre-drilled holes. Insert the large flange blind rivet from the accessible side until the flange rests evenly against the surface.
4. Position the Rivet Tool
Place the suitable nosepiece of the riveting tool over the mandrel. Keep the tool aligned with the rivet axis to help maintain even clamping during installation.
5. Set the Rivet
Operate the tool to pull the mandrel through the rivet body. The body expands behind the materials while the large flange distributes the clamping force across a wider surface area. Continue until the mandrel separates at the designed break point.
6. Inspect the Finished Joint
Check that the flange is fully seated and the materials are firmly held together. Make sure there is no excessive movement, surface damage, or visible deformation around the stainless steel large flange rivet before putting the assembly into service.
Packing and Transportation
| Transport : | By sea or By air,By truck,By express |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Port: | Shanghai , Ning bo,China |
| Lead Time : | 15~20 Working Day for production period,5days if have stock |
| Package : | 1. Bulk packing: 20-25kgs per carton 2. Small color box, window box, polybag, blister. special packing or as clients’ requirement. 3. Assortment set in polybag or plastic box. |
Company Service
Need a specific solution? Aipllemetal can provide customized stainless steel large flange rivets based on your application requirements.
Custom Sizes– Diameter and length options according to your requirements.
Custom Packaging – Packaging and labeling options for bulk orders.
Contact us with your requirements for a customized rivet solution.
FAQ
-
1. What are the different types of blind rivets?
-
2.When to use stainless steel rivets?
-
3. Do stainless steel rivets require a special tool?
Stainless steel rivets can be installed with a suitable blind rivet tool. A manual rivet gun may work for smaller rivets, while pneumatic or battery-powered tools are often used for larger rivets or high-volume installation. The tool and nosepiece should match the rivet diameter and setting requirements.
