How to Choose Aluminum Steel Open-End Blind Rivets in 2026?
Introduction
Aluminum steel open end blind rivets are the most popular and cost-effective fasteners for sheet metal, furniture, home appliances, automotive interiors decoration, electronics , DIY work at home and general manufacturing.They consist of aluminum alloy body and carbon steel mandrel, providing reliable fastening performance with easy one-side installation.
However, many buyers choose rivets only by price, which often leads to loose connections, breakage, pull-through or rust.In this guide, we explain clearly how to choose the right aluminum steel open-end blind rivets for your project.
1.Understand the Features of Aluminum Steel Open-End Blind Rivets
Aluminum steel open-end blind rivets have a hollow, open tail structure and are not waterproof.
Advantages
Low cost and suitable for mass production
Lightweight aluminum body material
Strong steel mandrel for medium load capacity
Compatible with manual, pneumatic and battery rivet tools
Limitations
No waterproof or dustproof performance
Moderate corrosion resistance
Not recommended for long-term outdoor use
Not suitable for heavy structural load-bearing parts
2.Choose Diameter Based on Load Requirements
Diameter directly affects shear and tensile strength.
2.4 mm: Light load – small electronics, thin plastic, tiny components
3.2 mm: General purpose – furniture, cabinets, appliance shells
4.0 mm: Medium load – metal frames, brackets, equipment casings
4.8 mm: Medium-heavy load – thick sheets, automotive interiors, housings
6.4mm:Thicker Sheets,Thicker Aluminium Material

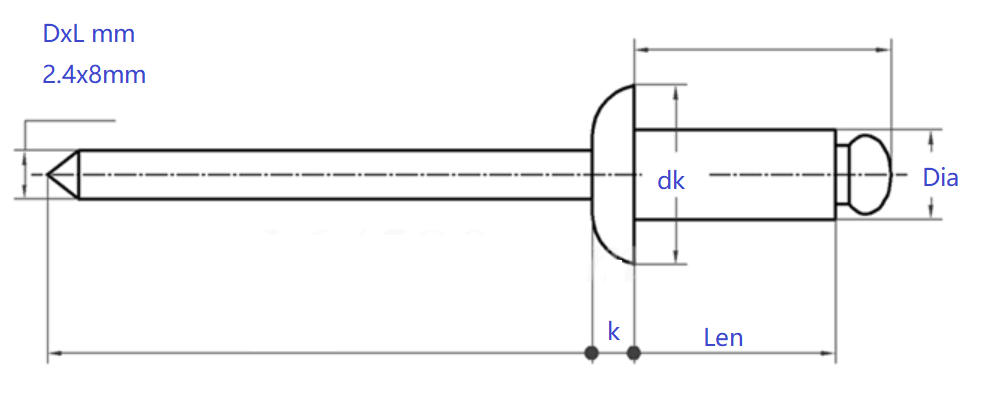

You can check Aiplle Diameter size in details :
3.Select Grip Range According to Material Thickness
Grip range = total thickness of the materials being joined.
Measure the total thickness of all layers
Choose a rivet whose grip range includes your measurement
Too short will not clamp tightly
Too long will unstable locking and mandrel residue

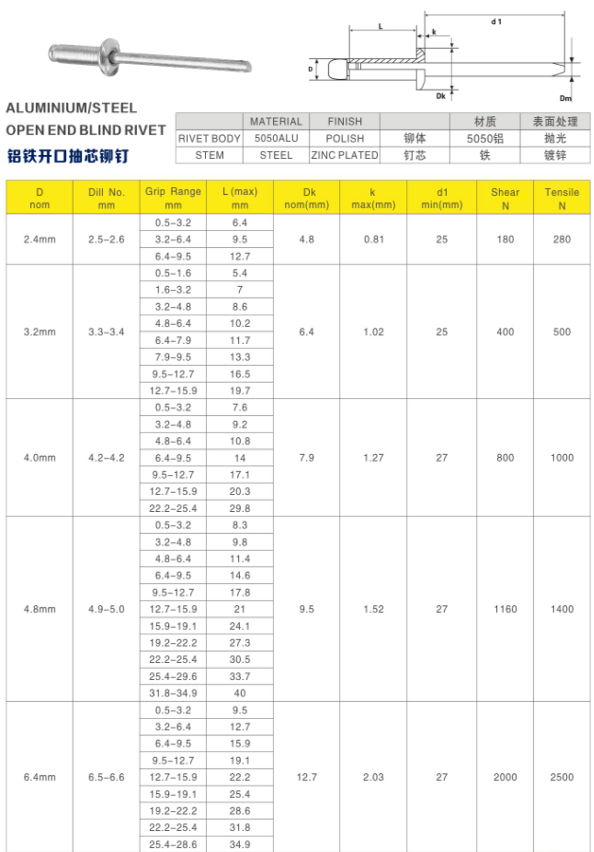

You can check Aiplle rivet manufacturer in china technical data for grip range selection
4.Choose Head Style for Appearance and Function
Dome Head-Aluminium Steel Dome head blind rivets
High strength, general purpose, used for internal parts and non-appearance surfaces.
Countersunk Head-Aluminium Steel CSK blind rivets
Provides a flush, smooth surface, ideal for instrument panels and exterior trim.
Large Flange Head-Aluminium Steel Big Head Blind Rivet
Wide head prevents pull-through, perfect for thin metal, plastic and fiberglass.
You can see Aiplle Different head Rivets:Large flange,open end ,countersunk head
5.Application and Environment Suggestions
Indoor dry environment: Aiplle aluminum steel open-end blind rivets are ideal.
FAQ：
1.What does open-end blind rivet mean?
Open-end blind rivets have a hollow tail without sealing. They are economical and widely used for general indoor applications.
2.Can aluminum steel open-end rivets be used outdoors?
They are not recommended for long-term outdoor use, as they may rust in rain and high humidity.
3.How do I calculate grip range?
Measure the total thickness of all stacked materials, then select a rivet whose grip range covers this value.
4.What is the most commonly used size?
3.2 mm diameter is the most universal size for general assembly.
5.Can these rivets be used for plastic materials?
Yes, but large flange head rivets are recommended to avoid pulling through the material.
6.What is the difference between open-end and closed-end rivets?
Open-end rivets are not waterproof. Closed-end rivets provide sealing and are used in humid or outdoor conditions.
7.Are aluminum steel rivets strong?
They have medium strength and are suitable for light to medium load applications, not for heavy structural use.
Conclusion
Choosing aluminum steel open end blind rivets mainly depends on load, material thickness, head style and working environment.With the correct diameter and grip range, these rivets offer stable, durable and economical fastening for most indoor assembly projects.
