Aluminum Steel MultiGrip Blind Rivets
Multi-grip Rivets Technical Specifications
| Type: | Multi-grip Rivets Aluminium Multi-grip Blind Rivets Multi-grip pop rivets |
| Rivet Body Material: | Aluminum |
| Rivet Mandrel Material: | Steel Mandrel |
| Body Finishing: | Polish |
| Mandrel Finishing: | Zinc Plated |
| Head Type: | Dome Head |
| Rivet Type: | Multi-grip Blind Rivet |
| Available Diameter: | 3.2mm, 4.0mm, 4.8mm blind rivets (1/8“", 5/32", 3/16") |
| Customized: | Customized size available |
| Standard: | 8070,Type A grip or Type B grip |
| Size: | ML3206,ML3208,ML3210,ML3212,ML3214,ML3216,ML4006,ML4008,ML4010,ML4012,ML4014,ML4016, ML4018,ML4020,ML4810,ML4812,ML1814,ML4816,ML4818,ML4820,ML4822,ML4824,ML4827,ML4830 |
Multi-grip Blind Rivets Features
.Wide grip range for different material thicknesses
.Aluminium body for a lightweight fastening solution
.Steel mandrel provides reliable setting performance
.Dome head design for general-purpose applications
.Suitable for blind riveting where access is available from one side
.Available in multiple diameters and lengths
.Reduces the need to stock multiple rivet sizes for different grip thicknesses

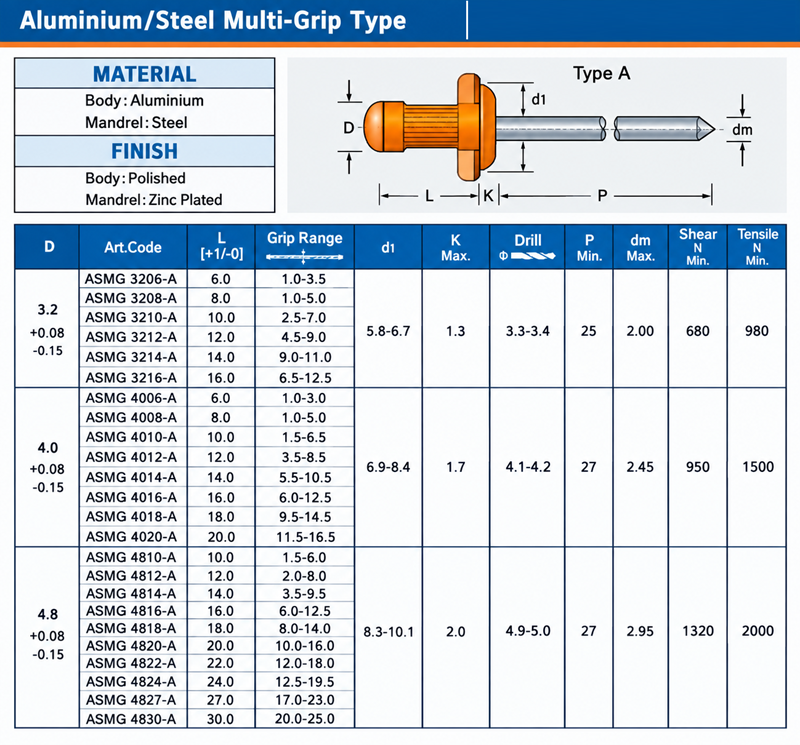

Multi-Grip Size Selection
Aluminium Steel Multi-Grip Blind Rivets are multi-grip blind fasteners featuring an aluminium rivet body and a steel mandrel. The multi-grip design allows one rivet size to accommodate a range of material thicknesses, providing a flexible and efficient solution for blind riveting applications.
These dome head blind rivets are available in 3.2 mm, 4.0 mm and 4.8 mm diameters, with different rivet lengths and grip ranges to suit various sheet thicknesses and assembly requirements.Diameter Length Grip Range Drill Shear Min Tensile Min.
3.2 mm 6.0 mm 1.0–3.5 mm 3.3–3.4 mm 680 N 980 N
3.2 mm 8.0 mm 1.0–5.0 mm 3.3–3.4 mm 680 N 980 N
4.0 mm 10.0 mm 1.5–6.5 mm 4.1–4.2 mm 950 N 1500 N
4.0 mm 12.0 mm 3.5–8.5 mm 4.1–4.2 mm 950 N 1500 N
4.8 mm 16.0 mm 6.0–12.5 mm 4.9–5.0 mm 1320 N 2000 N
Custom size is also available by AIPLLEMETAL.
Custom size is also available by AIPLLEMETAL.
Application
Aluminium Steel Multi-Grip Blind Rivets are commonly used for joining sheet materials and components where installation access is available from one side. Typical applications include:
.Sheet metal assembly
.Metal enclosures and cabinets
.Electrical equipment housings
.HVAC and ductwork
.Automotive components
.Appliance panels
.General fabrication
.Light-duty industrial assemblies
Package
| Package : | 1. Bulk packing: 20-25kgs per export carton 2. 100 or 500pcs Small color box, window box, polybag, 50 or 100pcs/blister. 3. Assortment set in polybag or plastic box. |
Installation Guide
.Measure the combined thickness of the materials being joined.
.Select the correct rivet diameter, length, grip range, and finish.
.Drill a hole for correct diameter.Hole diameter should be bigger at least 0.1mm than rivet diameter.
.Insert the Multi-grip blind rivet .
.Use a compatible blind-rivet tool ,hand-rivet gun or air-drive gun with the correctly sized nosepiece.
.Confirm that the grip form evenly behind the workpiece and that the rivet head is seated correctly.
Frequently Asked Questions
-
1. What is an aluminium steel multi-grip blind rivet?
-
2. What materials are used in aluminium steel blind rivets?
-
3. What sizes are available of Multi-grip rivets?
-
4. What is the advantage of a multi-grip blind rivet?
