Aluminum Steel Long Blind Rivets
Technical Specifications
| Rivet Item: | Aluminium Steel Extra Long Blind Rivets Long Grip Blind Rivets |
| Material: | Aluminum Rivet Body/Steel Rivet Mandrel |
| Surface Finishing: | Silver Polish Rivet Body/Zinc Mandrel |

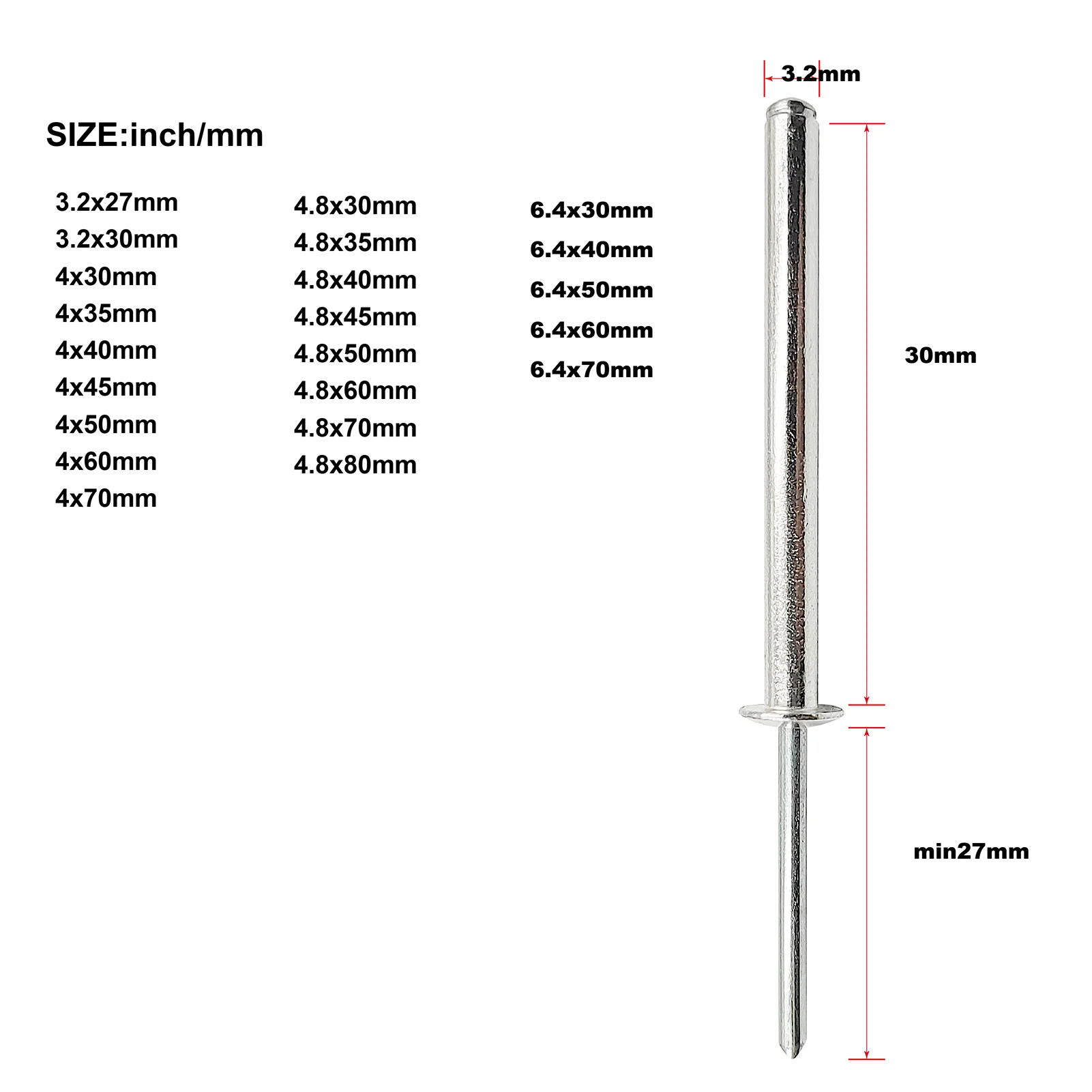

| Rivet Diameter: | 3.2mm/4mm /4.8mm/6.4mm ,/3/32",1/4",3/16",1/8" |
| Rivet Body Length: | 25mm~70mm |
| Customized: | Customized size as client requirement |
| Standard: | DIN7337,GB12618,ISO15987. |
Key Features
- Aluminum rivet body with steel rivet mandrel: Aluminum rivet body provides good corrosion resistance and reduced weight, while the steel mandrel supplies the pulling strength required during installation.
- Extra-long design:Available in multiple extended lengths for assemblies that require longer material reach than standard blind rivets.
- Durable fastening:When the correct diameter and grip range are selected and the rivet is properly installed, it forms a secure permanent joint with reliable resistance to loosening and breakage.
- One-sided installation:Suitable for applications where only the front side of the workpiece can be accessed.
- Smooth dome head:The dome-head shape provides a clean finished appearance and distributes the clamping load around the drilled hole.
Applications of Extra Long Blind Rivets
Extra Long Blind Rivets are designed for fastening applications that require a longer rivet length and extended grip range. They are ideal for joining thicker materials, multiple layers, deep sections, and recessed components where standard blind rivets may not provide sufficient grip.
Typical applications include:
Thicker Sheet Metal – Extra long blind rivets are used for fastening thicker sheet metal and metal components where a longer grip length is required.
Multi-Layer Assemblies – Suitable for joining multiple layers of sheet metal, brackets, profiles, panels, and reinforcing components.
Deep Sections and Recessed Areas – Long blind rivets are ideal for fastening deep or recessed sections where standard rivets are too short.
Hollow Profiles and Box Sections – Used to join components through hollow profiles, channels, and enclosed metal sections.
Structural Metalwork – Suitable for fastening thick metal profiles, frames, brackets, and reinforced structures.
Truck and Trailer Manufacturing – Used for connecting thick panels, reinforcements, brackets, and multi-layer body components.
Packing and Transportation
| Transport : | By sea or By air,By Truck, |
| Payment Terms: | L/C, T/T, Western Union.Paypel |
| Port: | Shanghai , Ningbo,China |
| Lead Time : | 15~20 Working Day for A 40' Container |
| Package : | 1. Bulk packing: 20-25kgs per carton. 2. Small color box,drawer design box, window box, polybag, blister. Double shell packing or as clients’requirement. 3. Assortment set in polybag or plastic box. |
Installation Guide
1.Choose an Extra Long Blind Rivet according to the required grip range, not simply the overall rivet length.
2.Use the recommended hole diameter for the rivet size.
Make sure the rivet body can pass completely through all material layers.
3.Keep the rivet tool aligned with the rivet during installation.
4.For thick or multi-layer assemblies, confirm that the selected long grip blind rivet provides sufficient grip range.
5.Always follow the manufacturer's recommended installation and performance specifications.
Custom service and Choose Aipllemetal
-
1. What is long length Rivets?
-
2. Do Aipllemetal provide extra long blind rivets?
Yes,AIPLLEMETAL provide extra long length blind rivets,Length is vary from 30mm to 70mm
